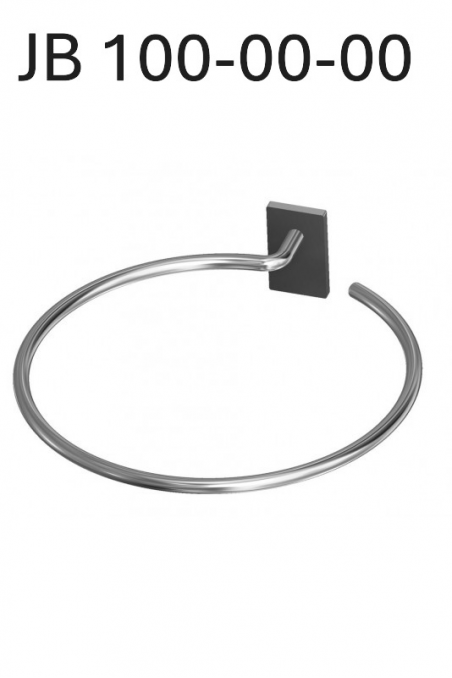

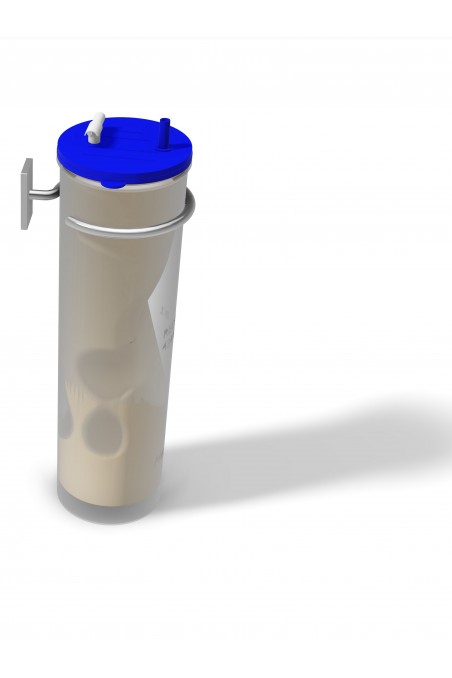

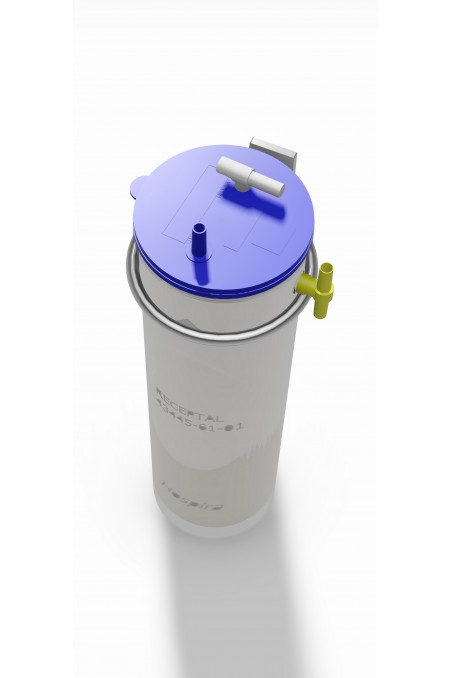

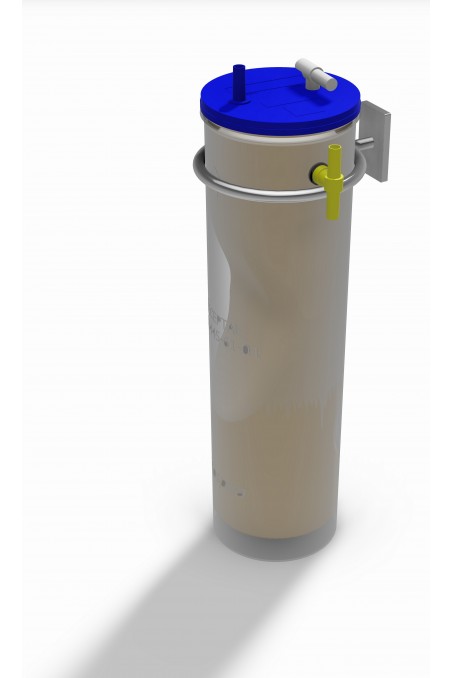

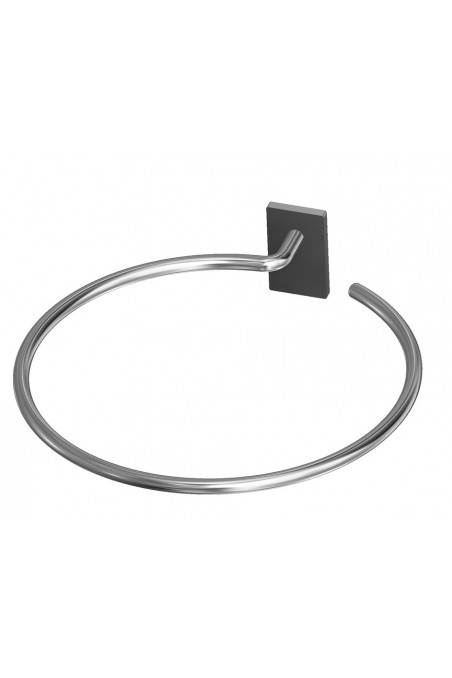

Bracket with T-slot for 2 Litre conical suction canister, e.g. from Abbott/Hospira. With a guide for T-track Brackets.
Minimum quantity for sale: 5 pcs.
Specifications:
Weight: 0.189 kg.
Material: 8 mm stainless steel (AISI 304)
Surface: Electrically polished

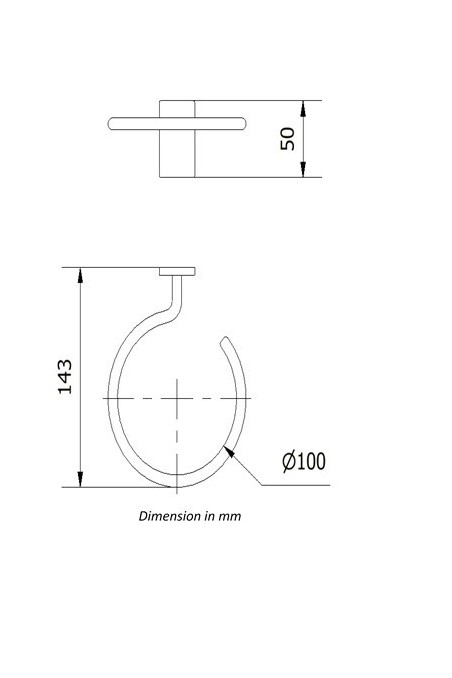

Width: 143 mm. (Outer measure)
Height: 50 mm.
Diameter: Up to Ø100 mm. (Internal dimensions)
HS Code: 9402900000
Country of origin: Danish
Brand: JB-Medico.
Designed so it works with the equipment at the hospital, e.g.
P/N JB 47-00-00 Wall bracket Aluminium
P/N JB 120-00-00 Rail clamp with one ball lock and T-track
P/N JB 146-00-00 Rail clamp with T-track EU DIN standard
P/N JB 158-00-163 Multiclaw with a T-slot
P/N JB 820-625-163 GCX-rail bracket with a T-slot
It can be installed without tools and washed and disinfected in the instrument dishwasher.
When purchasing the above bracket, you can attach it to:
1. IV-poles / IV-Stands
2. Medical Equipment Rails
3. Columns
+ walls, syringes, and anaesthesia tables, trolleys, etc.
JB-Medico makes a difference in the design and advice of hygienic suspension solutions for:
Healthcare, food and pharmaceutical industry.
Hospitals, medical centres, chiropractors and dentists.
Physiotherapists, schools and laboratories.
Bracket Ø100 mm., for 2 Litre suction canister, Abbott/Hospira.
T-Slot Wall bracket, e.g. glove box holders. |
|
|
Slide clamp half model, with one ball clasp and T-slot. 10x25 mm. EU-DIN Standard |
|
|
Slide clamp half model, locked with one ball clasp, and a T-slot track. |
|
|
Multibracket with a T-slot bracket can be turned upside down, fits from 16-41 m.m |
|
|
GCX-rail bracket with a T-slot, JB 820-625-163 by JB Medico |
|
|
T-slot bracket for multibracket. Suitable for 1 piece. |
|
